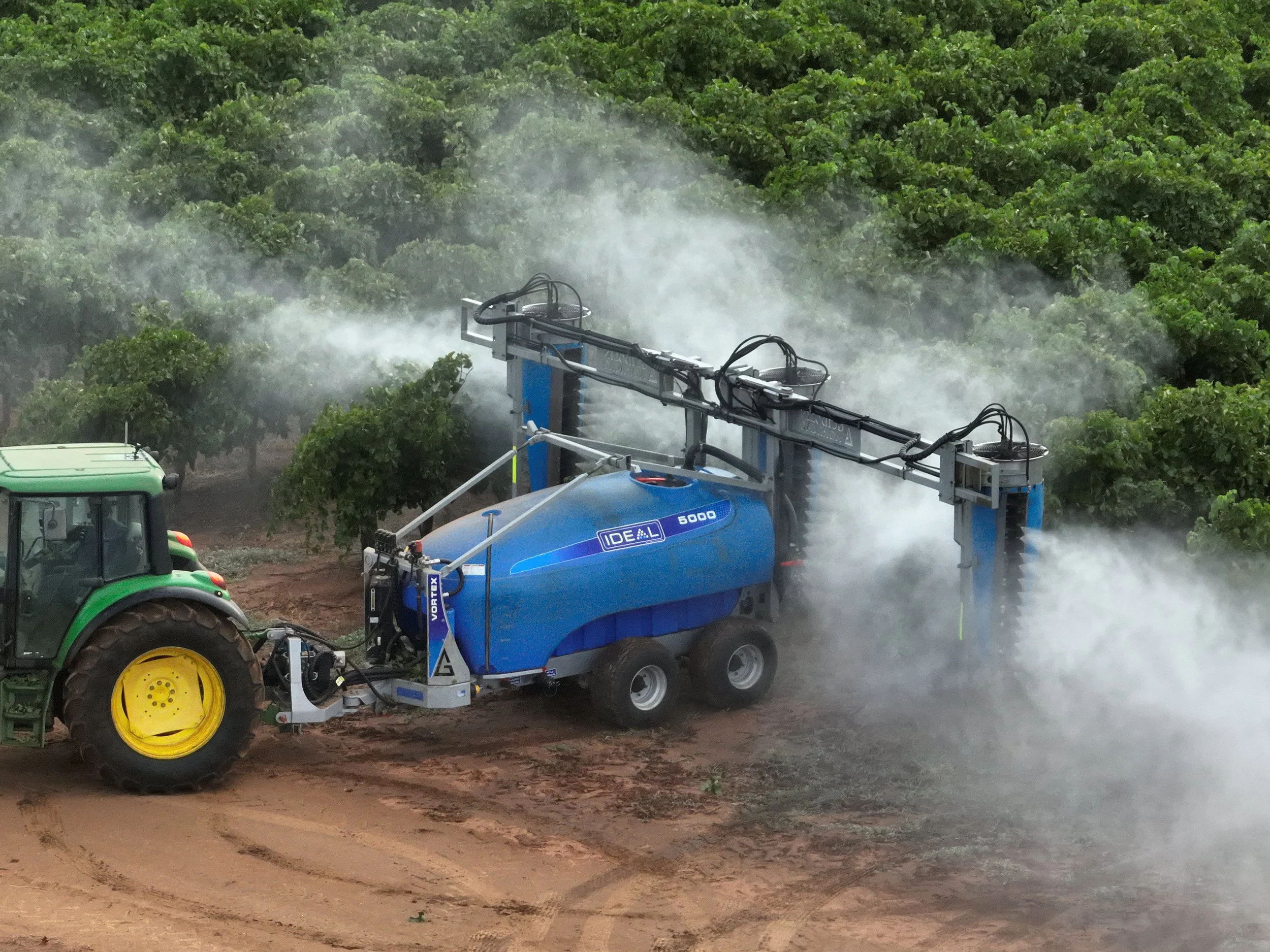

Tank
3,000 litre to 7,000 litre main tank (sepatate 7 litre fresh water tank).

Pump
High pressure brass head pump – IDS2600 (max. 50-bar) - large capacity (259LPM) six diaphragm pump featuring front external bronze manifolds and brass heads to minimise corrosion. Optional 250LPM and 300LPM high pressure pump.

Drive
Hydraulic powered. Minimum horsepower required 100

Controls
Standard Electric - high pressure brass solenoid valves or motor valves, 4 section in-cab control with electric pressure adjustment. Optional Bravo 180 automatic rate controller, 4 section (left/right) with optional. 4-section control. ISO Bus module available.

Agitation
3,000L— 7,000L - twin brass agitators. Optional hypro hydraulic pump.

Filtration
Full filtration system - tank filling basket, fitted with twin suction filter.

Nozzles
Standard Albuz ceramic nozzles.

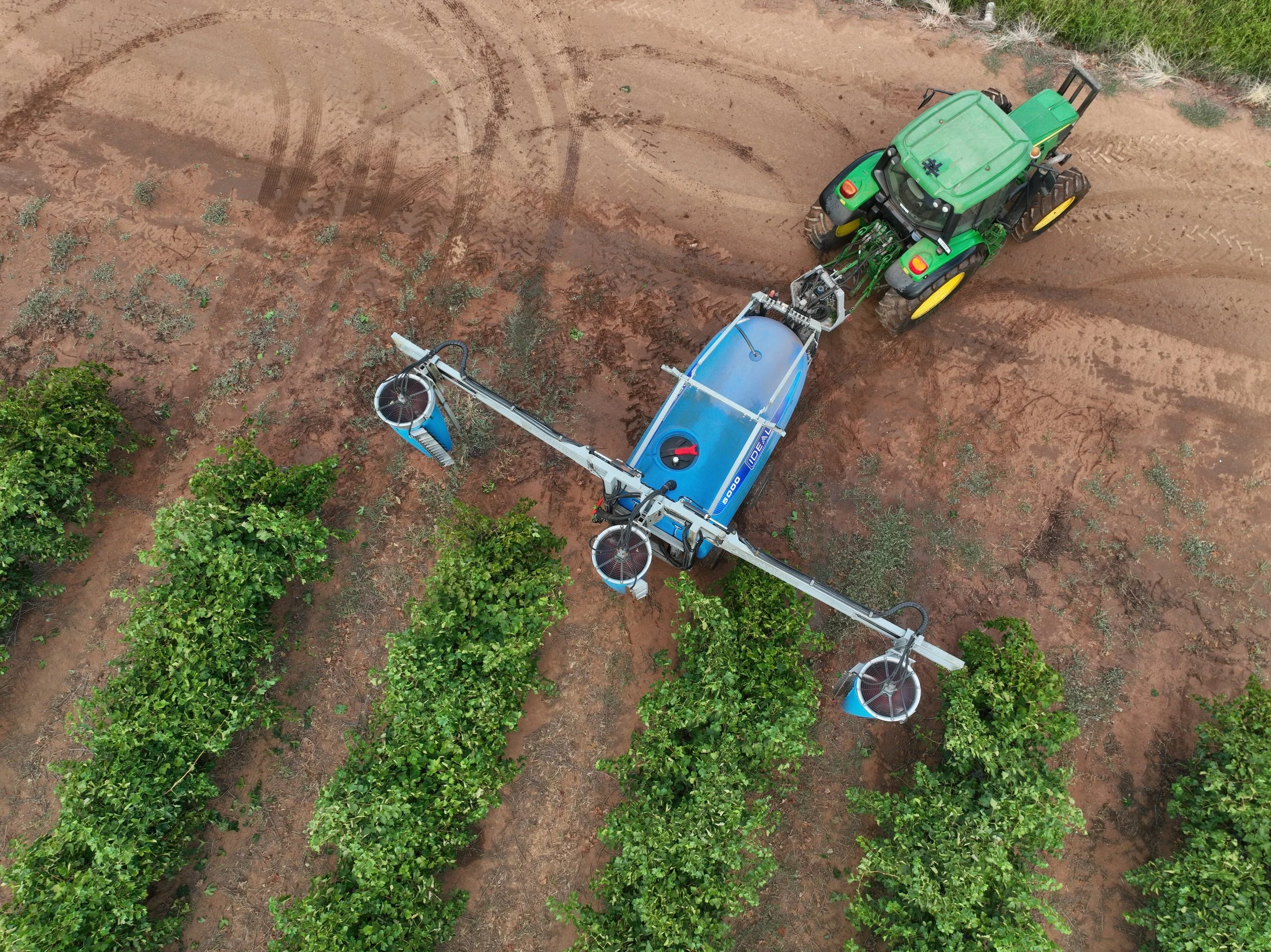

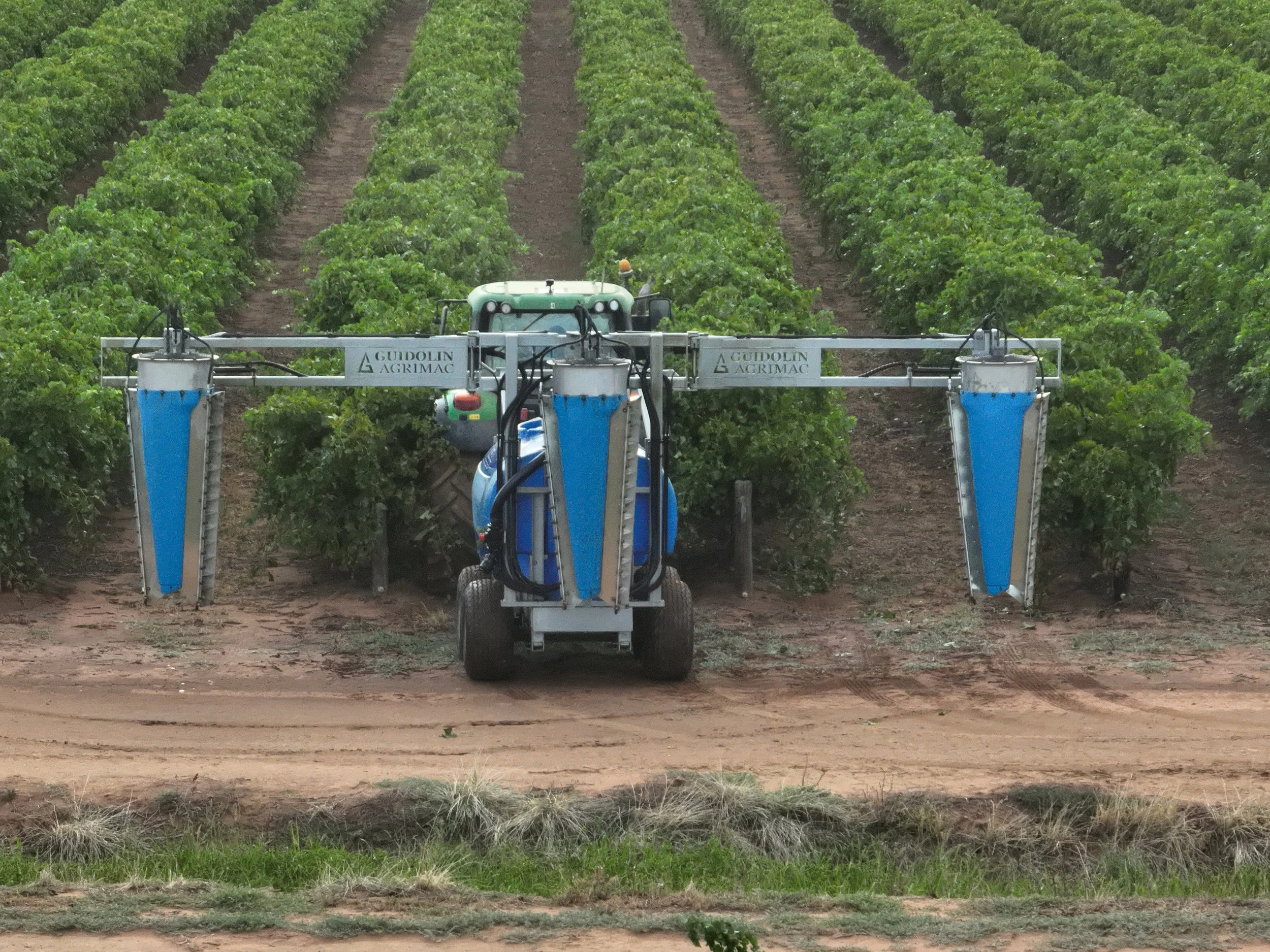

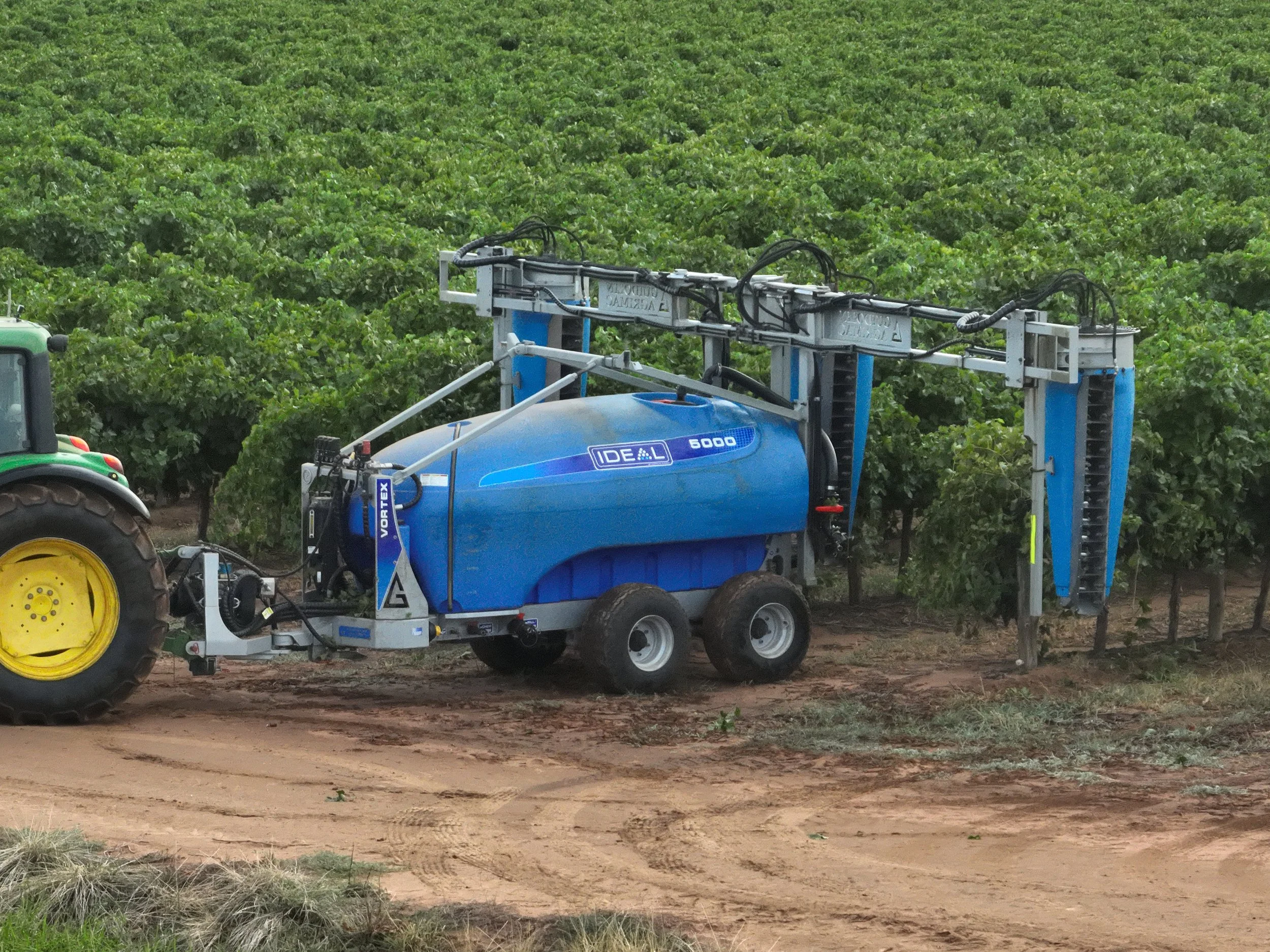

Chassis & Boom
Powder Coated, full-length chassis with adjustable drawbar and 6-stud wheel hubs, bumper bar comes with leaf guard. Fixed axle standard; optional adjustable height and width axle. Jockey stand supplied on all models. Two and three row booms available with hydraulic fold, lift, side shift on request.
Hot-dipped galvanised is available on request.

Wheels
3000L - 5000L - steel rims, 400/60 x 15.5"
6000L & 7000L —steel rims, 500/50—17” flotation tyres
