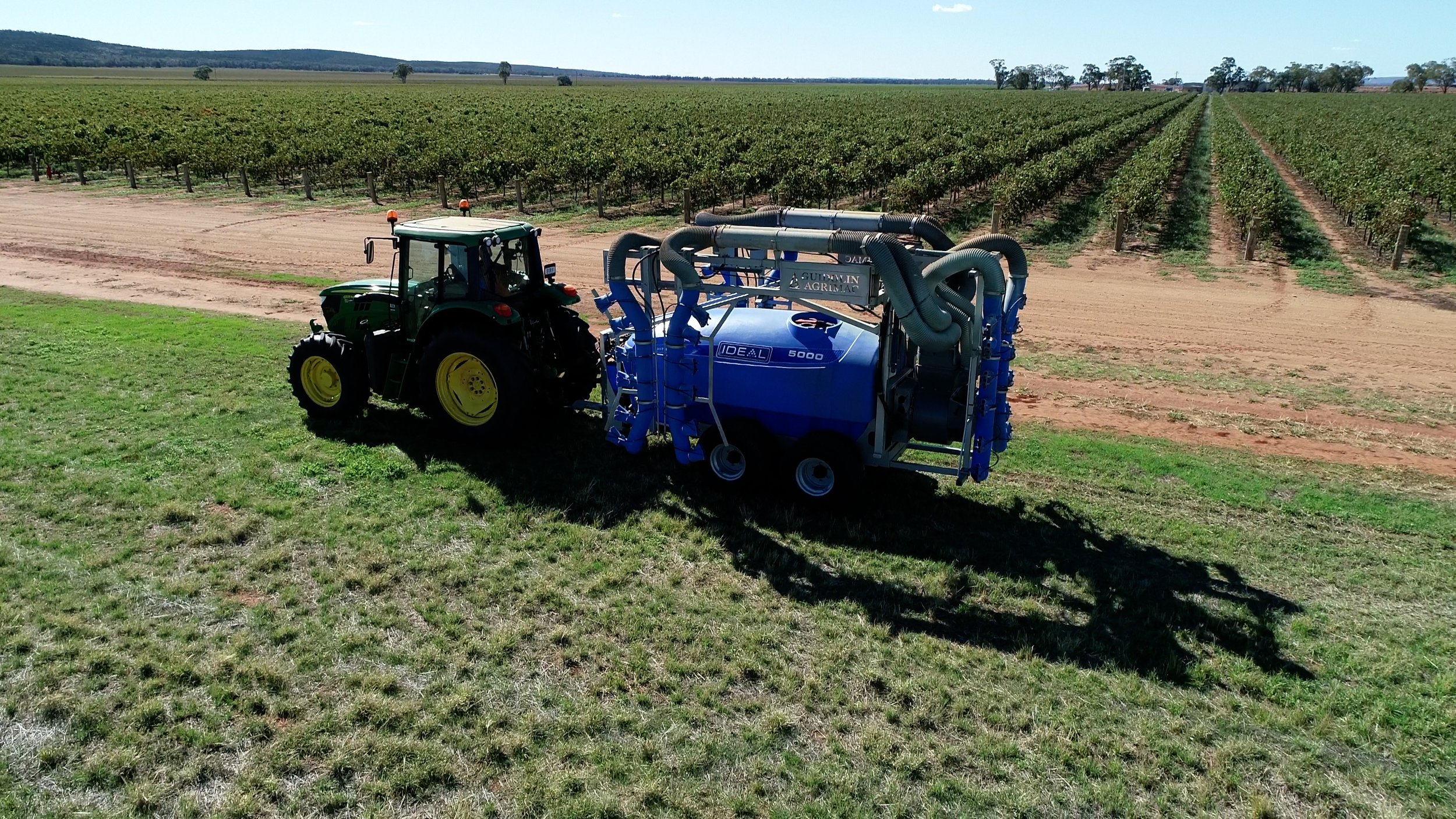

Tank
3,000 litre to 5,000 litre main tank (separate 7 litre fresh water tank).

Fan - Ciclone
Twin turbine fan, 2 speed.
Fan capacity 19,032 m3/h.
Air speed 85 m/s.
Minimum horsepower required 90.
Optional hydraulic fans available.

Fan - Ideal Supra
Twin turbine fan, 2 speed
Fan capacity 14,8000 m3/h
Air speed 110 m/s
Minimum horsepower required 75

Pump
High pressure brass head pump – IDS2600 (max. 50-bar) - large capacity (260LPM) six diaphragm pump featuring front external bronze manifolds and brass heads to minimize corrosion.
Optional 250LPM and 300LPM high pressure pump.

Drive
Heavy duty PTO driveshaft comes with safety covers and quick release pins.
Optional constant velocity (CV) shaft available.

Controls
Standard Electric - high pressure brass solenoid valves or motor valves, 4 section in-cab control with electric pressure adjustment. Optional Bravo 180 automatic rate controller, 4 section (left/right) with optional. 4-section control. ISO Bus module available

Agitation
3,000 litre — 5,000 lire twin brass agitators.
Optional hypro hydraulic pump.

Filtration
Full filtration system - tank filling basket, fitted with twin suction filter.

Nozzles
Standard Albuz ceramic nozzles.

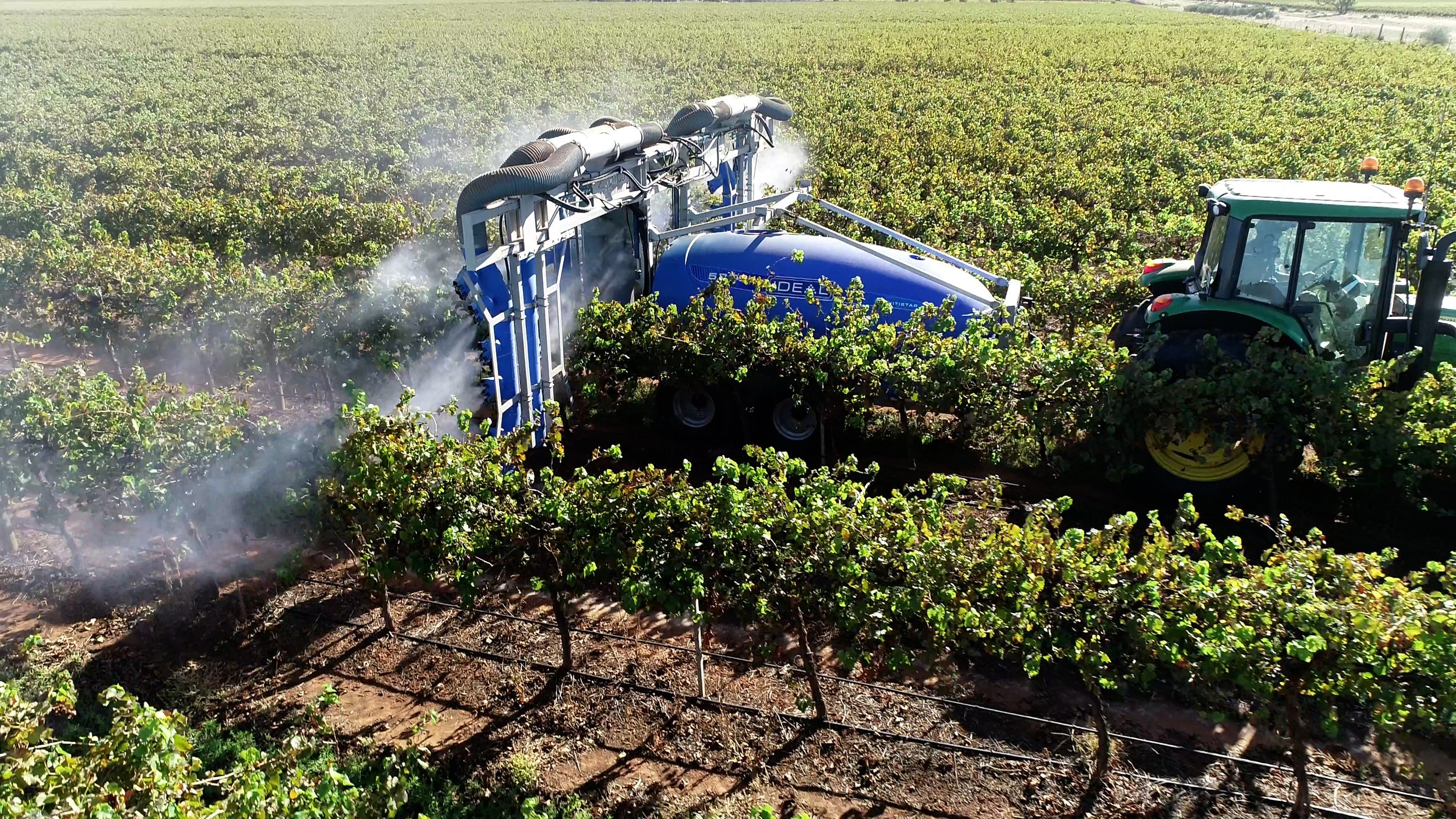

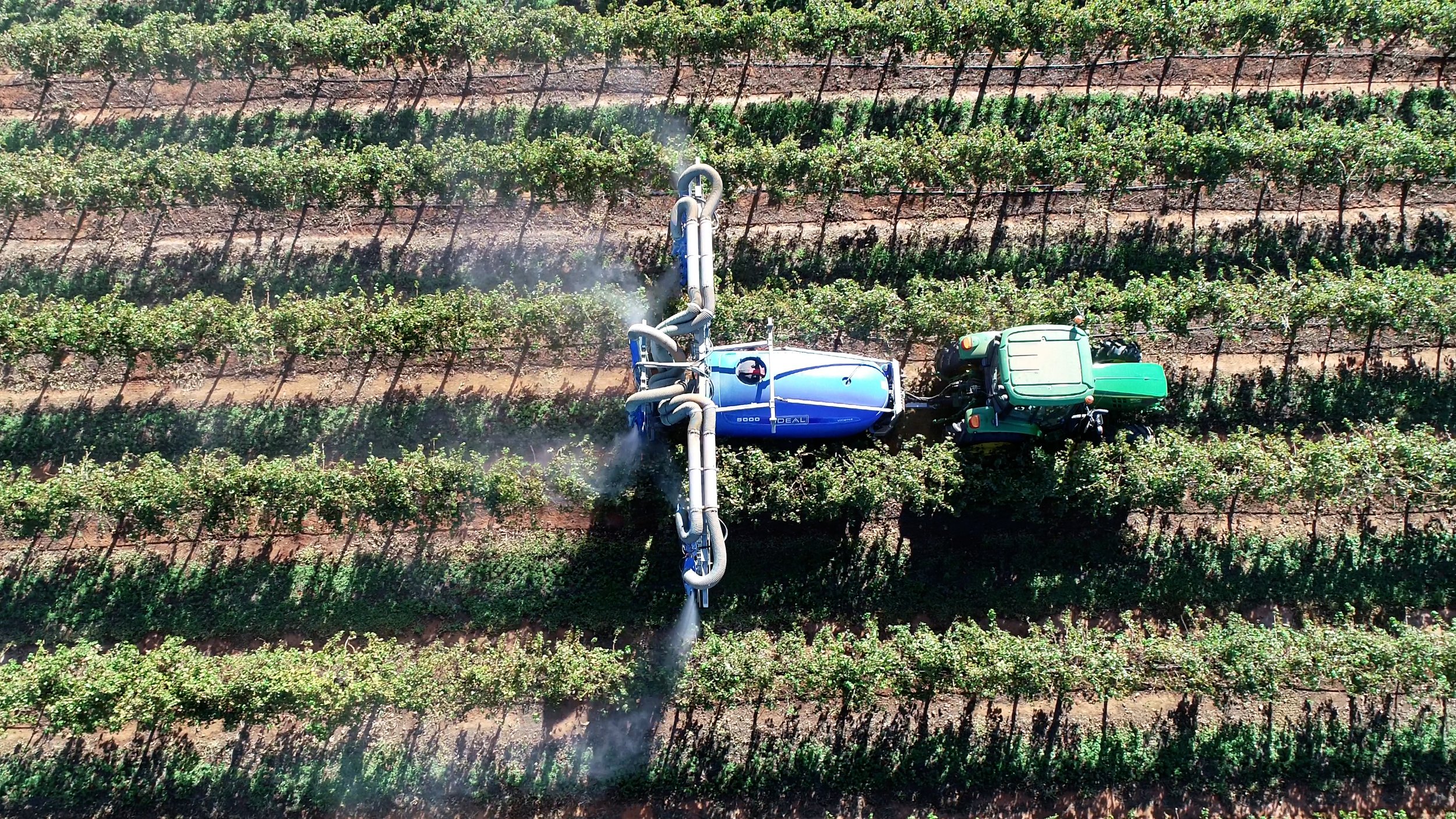

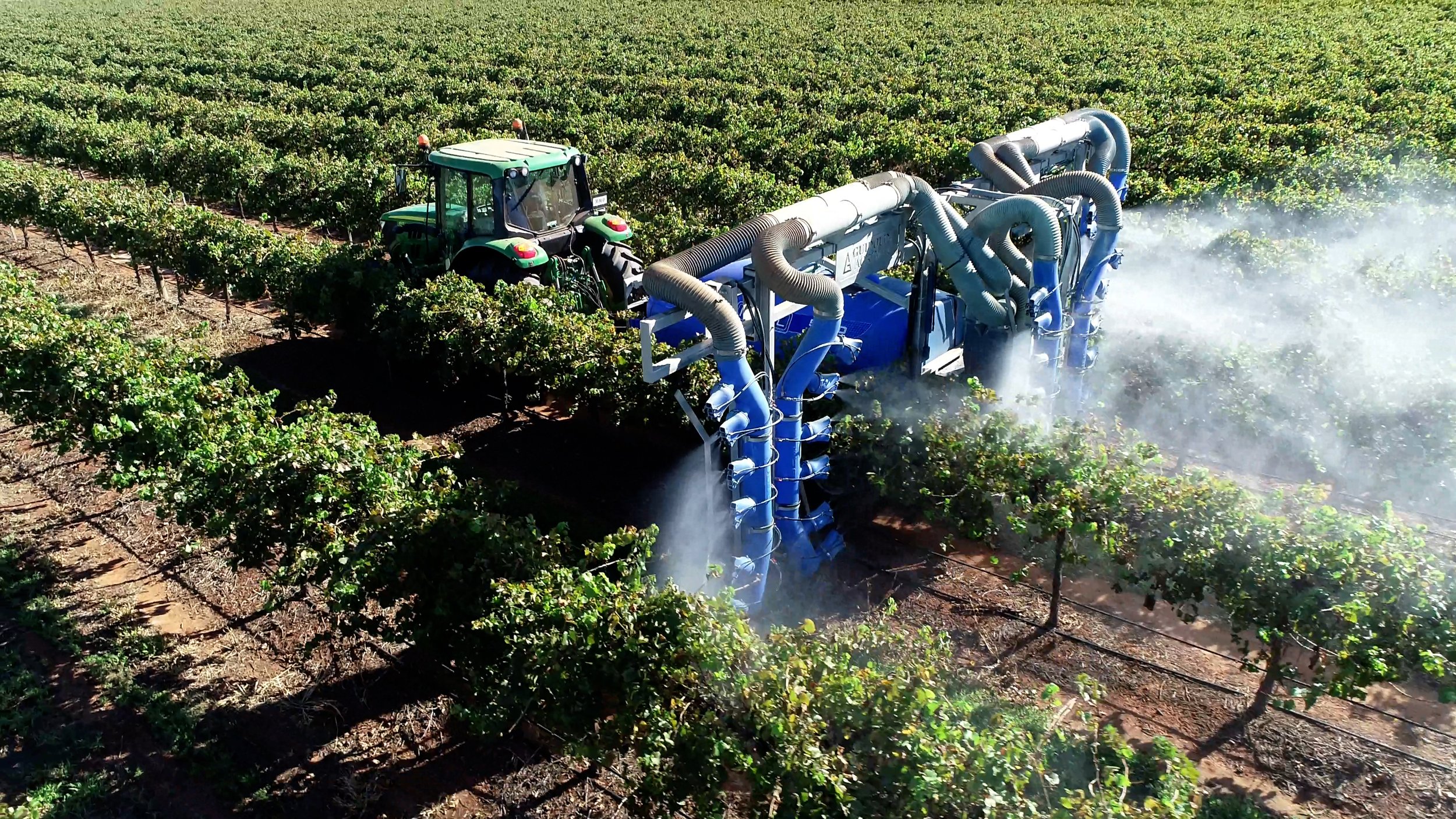

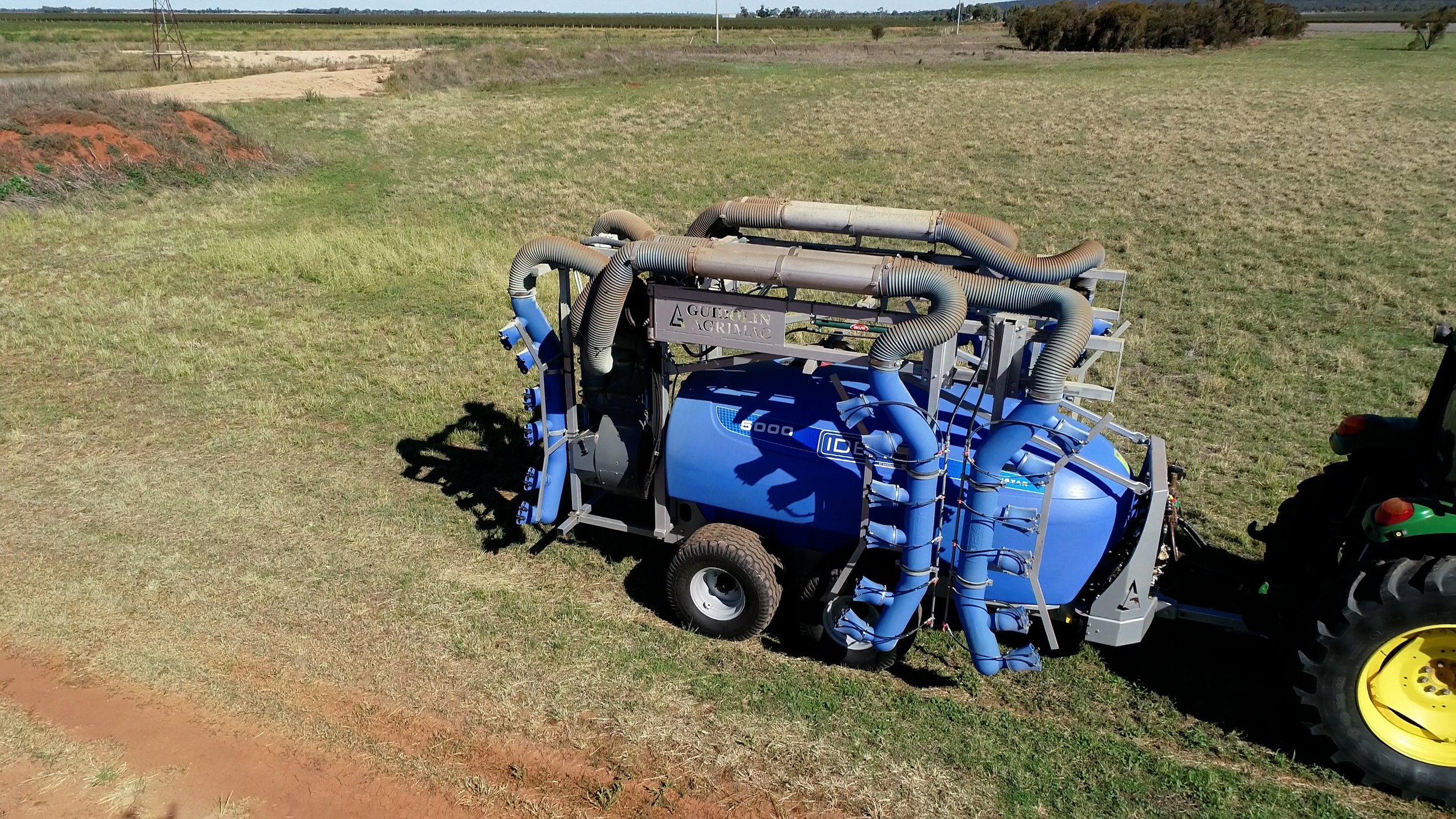

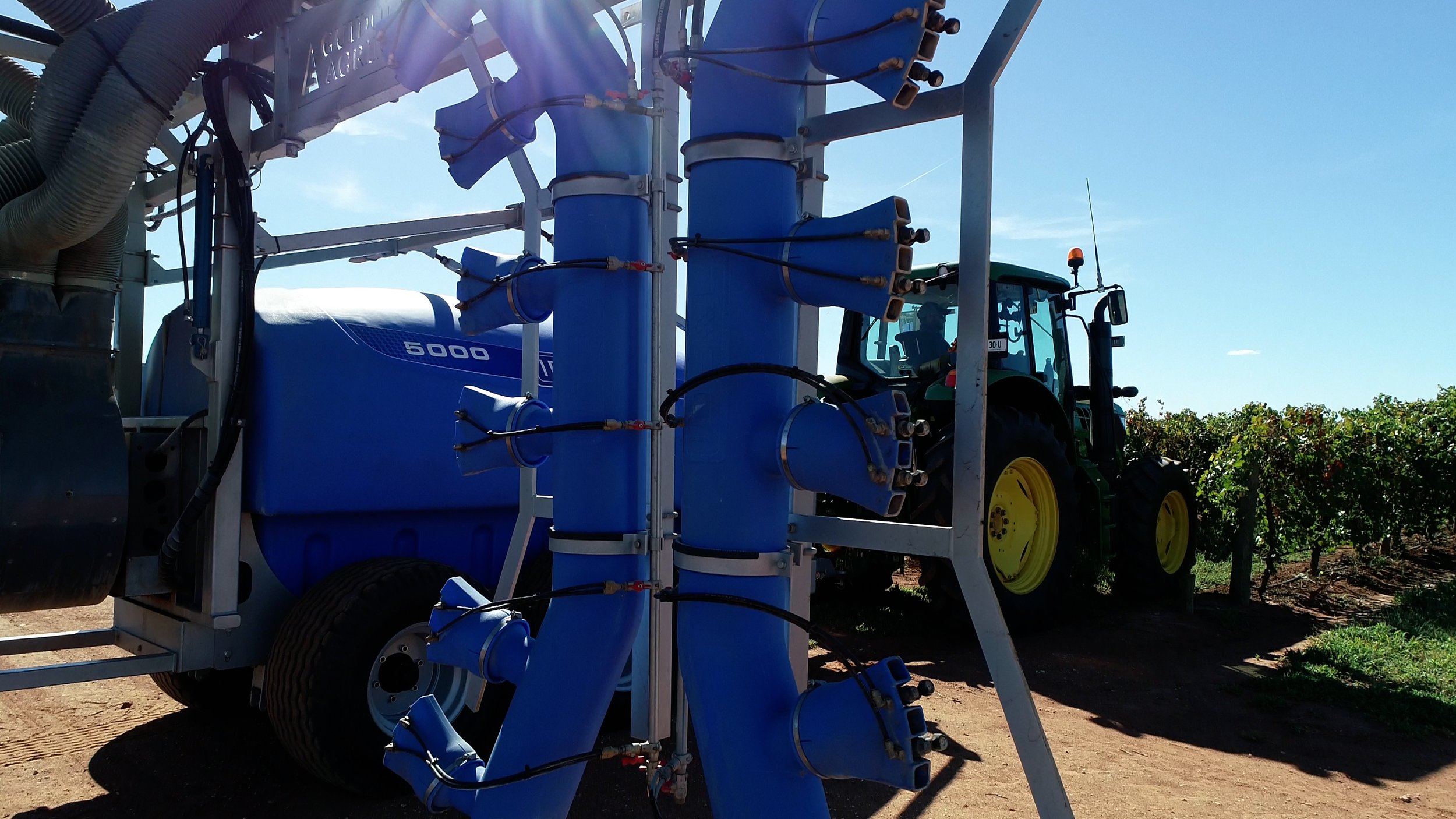

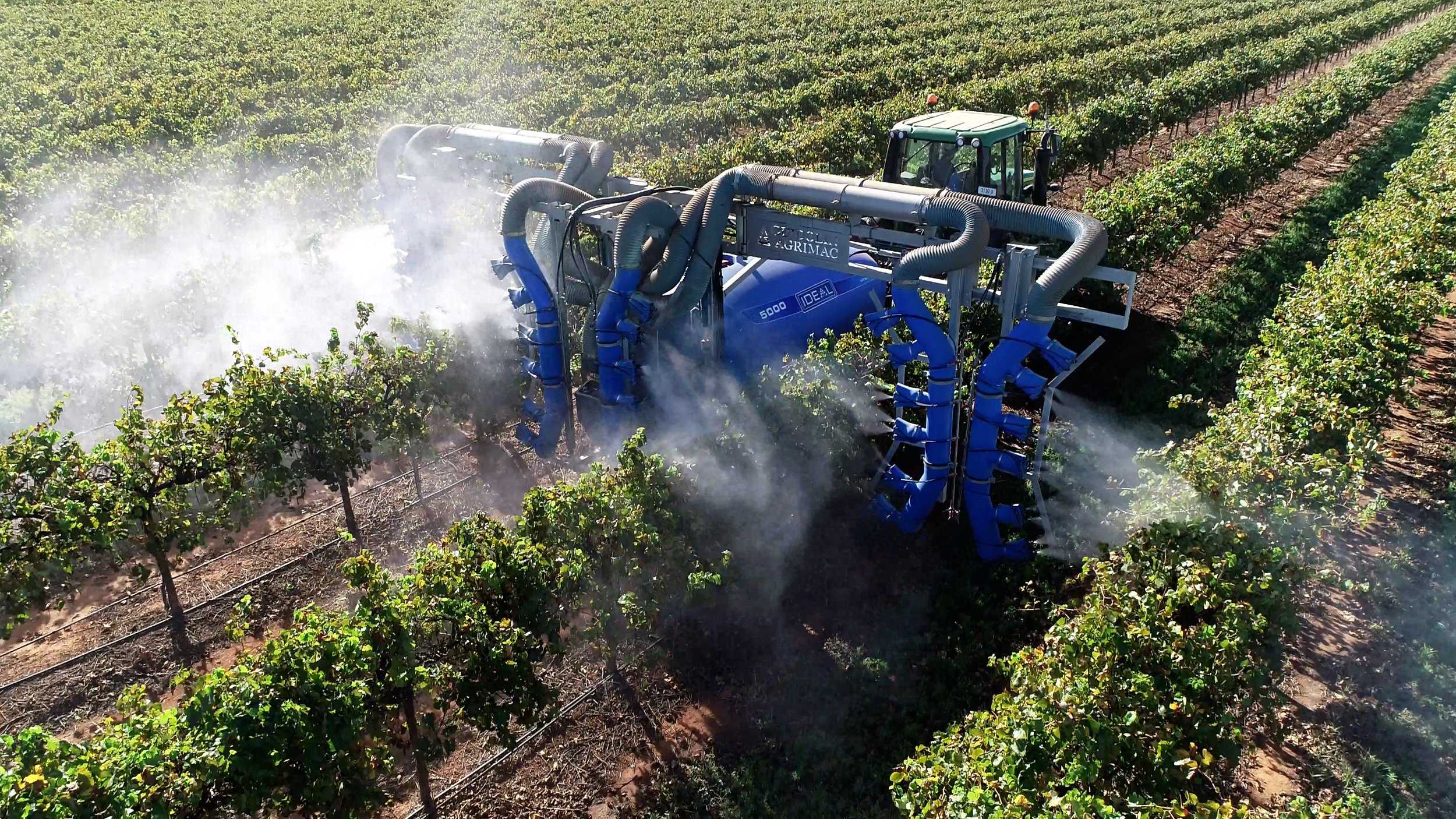

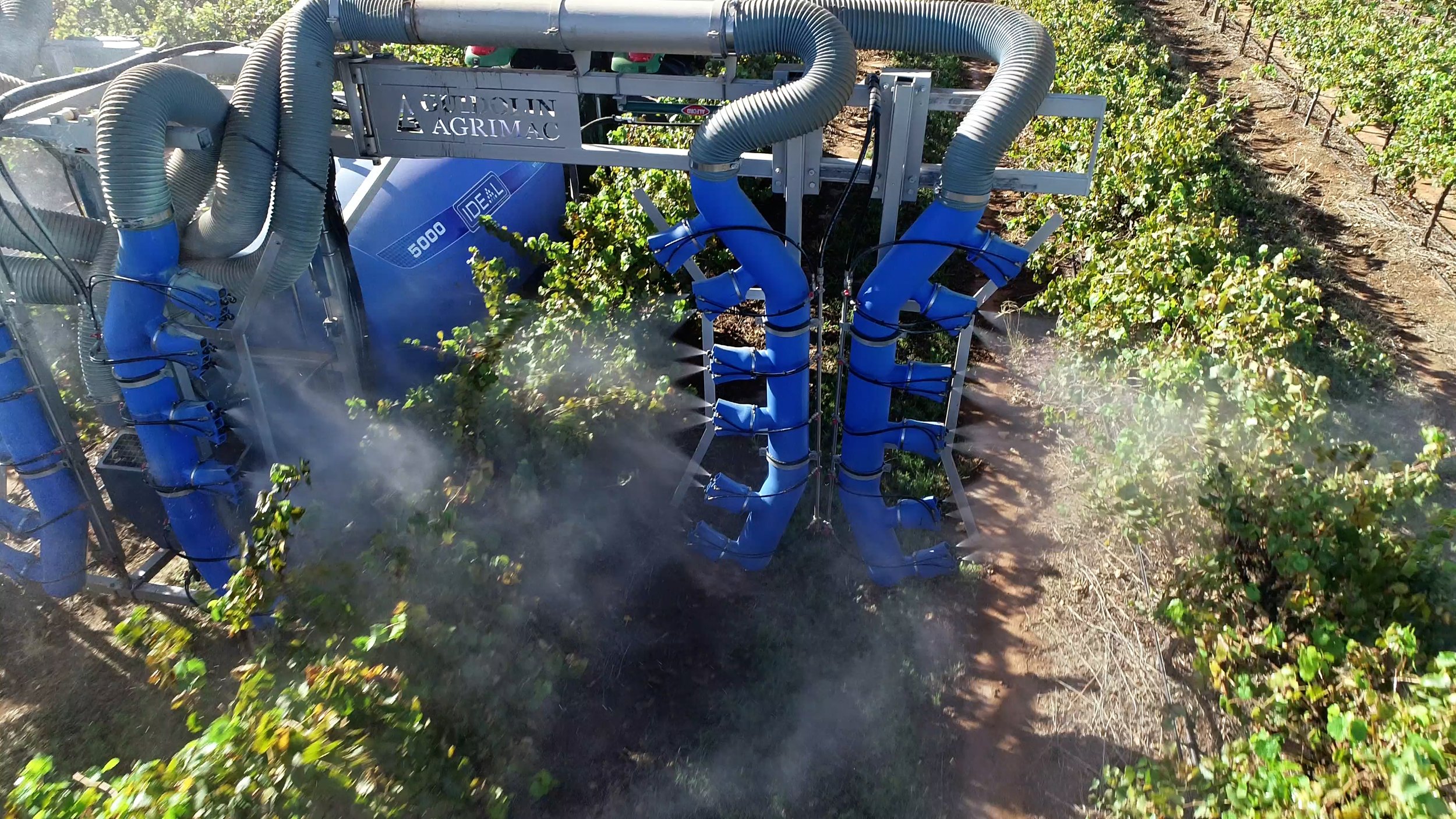

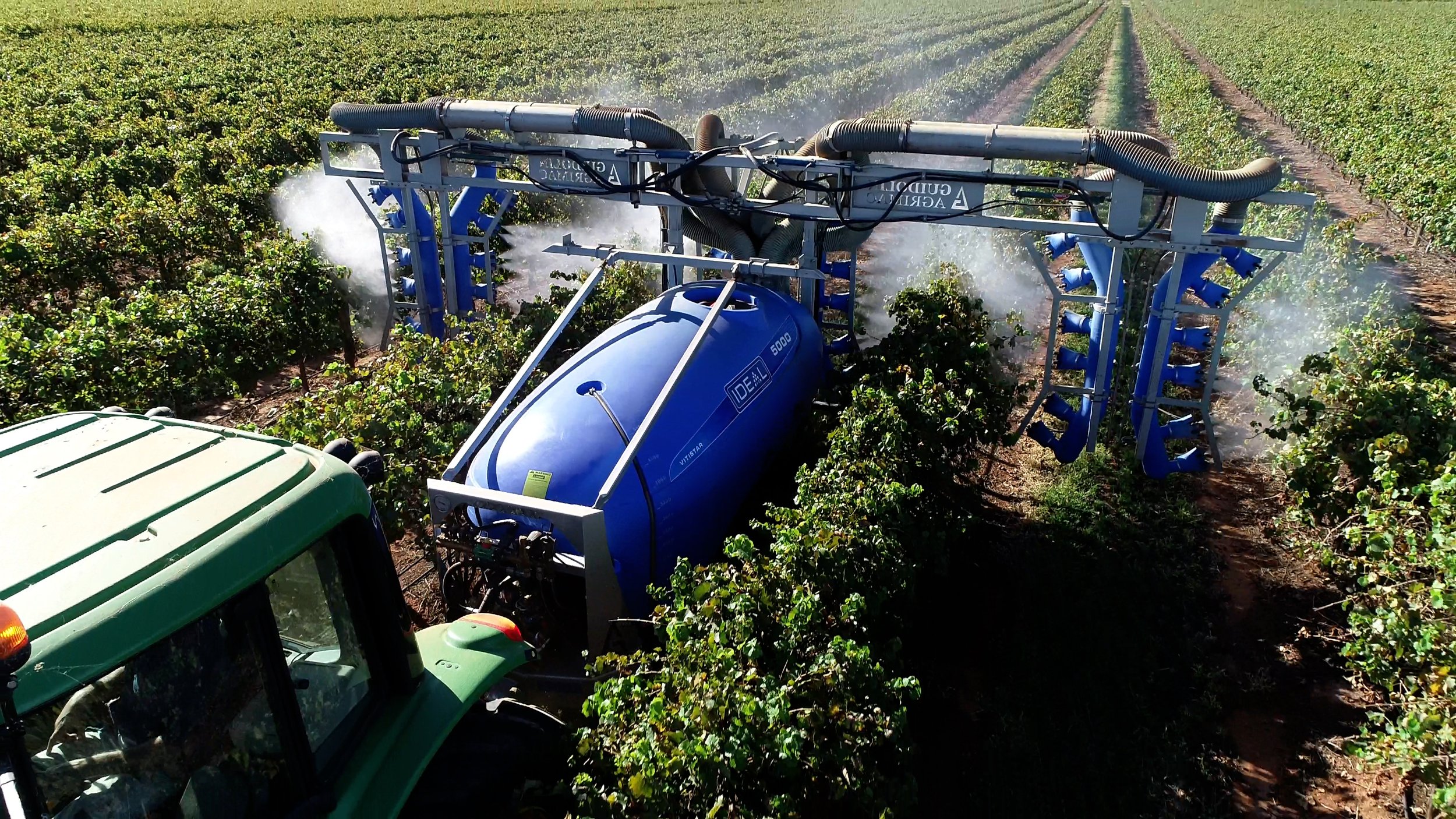

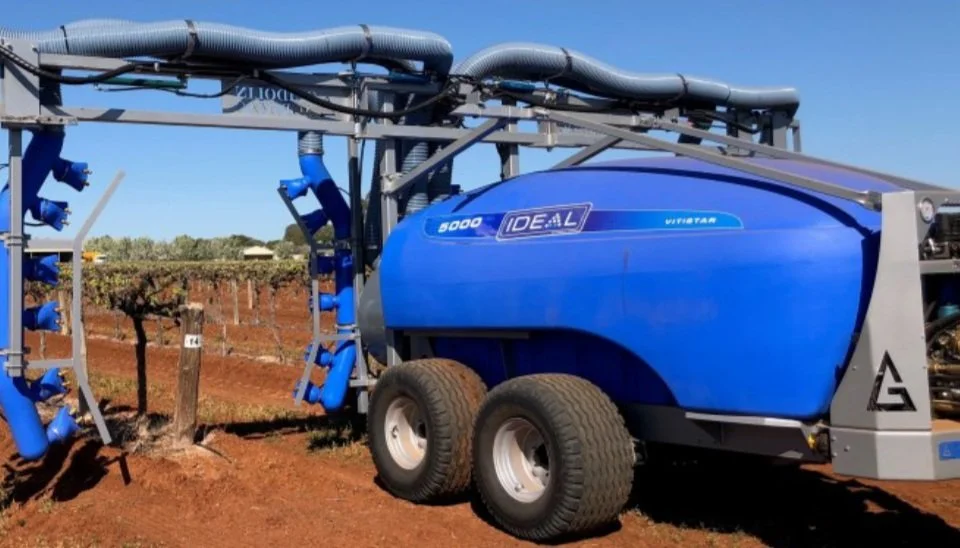

Chassis & Boom
Powder Coated, full-length chassis with adjustable drawbar and 6- stud wheel hubs, bumper bar comes with leaf guard. Fixed axle standard; optional adjustable height and width axle. Jockey stand supplied on all models. Two and three row booms available with hydraulic fold, lift, side shift on request.
Hot-dipped galvanised is available on request.

Wheels
3,000L—5,000L - steel rims, 400/60 x 15.5" flotation tyres
